Foil Drive Battery Grease for Gen2 SystemsUpdated 3 months ago
This article contains information about the dielectric grease that comes with Gen2 systems.
Continue reading to learn why we have included battery grease as well as where and how to apply it.
Warning: ONLY use the provided Foil Drive Battery Grease on your unit.
Do NOT use any other brand of dielectric grease on your battery or plugs as this will void warranty and damage your system!
What is dielectric grease and why is it used?
Dielectric grease is a special grease that is designed to lubricate electrical connections to prevent corrosion and improve connection. The continued use of this grease is imperative to keep your unit protected for the long run.
Where do I use the grease?
a. The battery connection plug
b. Removable motor plug
How often do I apply it?
Battery:
Every single time you are entering the ocean!
If you are foiling in fresh water, you can extend this out to every second use. After you have applied the grease generously to your battery several times, you can reduce the amount applied as the grease will accumulate on the plug. Always ensure the terminals are covered in grease on the battery, doing this will ensure a good amount is transferred to the plug inside the housing, protecting your unit!
O-Ring + Motor Plug:
The O-ring has come greased from factory. Remove your O-ring if you can see sand built up, or if you're finding your nose cone is more difficult to latch closed.
If you leave the motor connected to the plug, apply grease and leave secured. You do not need to apply every use. Build-up of grease here can cause the pins to compress and affect the connection of the motor.
How do I apply it?

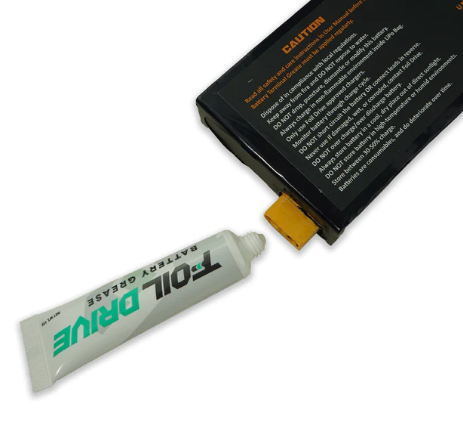

A. On the front of the battery, apply a generous amount to the terminal plug.
B. By applying a generous amount on the battery plug and pushing it into the unit, the grease will transfer to the receiving plug inside your unit. Note: Some batteries are more difficult to push in than others, so ensure you have applied firm pressure to insert your battery every time.

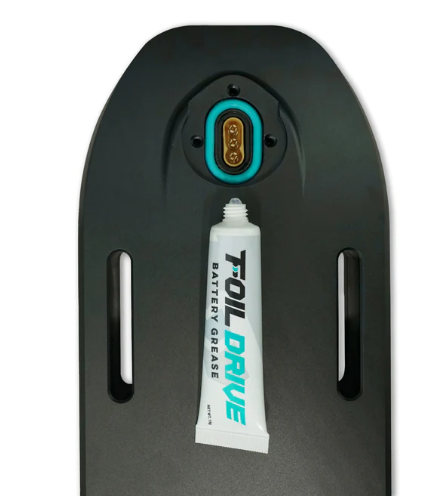

C. Apply a thin layer across the pins on the housing before securing the motor plug.
What do I do when I run out?
We have included two tubes of the dielectric grease with your unit at the time of purchase. Before you run out completely, purchase more tubes from our online store, or pick some up from your local dealer.
Grease is available in 2 sizes:
Foil Drive Battery Grease 15g
Foil Drive Battery Grease 250g
To learn more on grease application, watch the videos below.
Related Articles
Lithium Batteries Use, Care & Storage
Motor Stuttering or Cutting Out
As always, if you have any issues or concerns, please reach out to [email protected] and we will be happy to assist you.
Happy Foil Driving!
