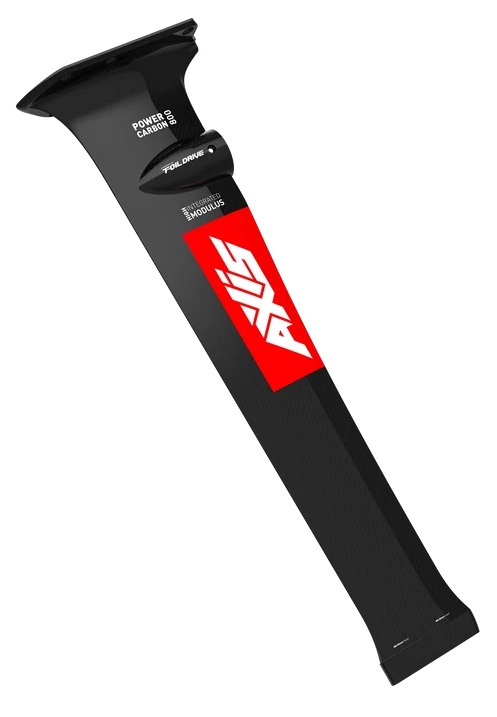

AXIS Carbon Integrated MastUpdated 2 hours ago
For riders looking for the ultimate AXIS Foil Drive setup, the Carbon Integrated Mast takes the concept even further.
Available in both High Modulus (HM) and Ultra High Modulus (UHM) carbon constructions, the Carbon Integrated Mast combines strength, stiffness and efficiency in a sleek, purpose-built Foil Assist platform.
The Motor Pod is positioned 15 cm below the baseplate, providing cleaner hydrodynamics while leaving more of the mast free from drag.
Reinforced Motor Pod
The mast has been specifically engineered around the integrated Motor Pod.
The chord around the Motor Pod has been increased and the cavity reinforced with a denser carbon layup, providing additional torsional strength in this critical area.
A redesigned baseplate provides a slimmer connection to the Foil Drive chassis, creating a solid and refined interface between the mast and Foil Drive system.
Fully Internal Cable Routing
All cables are routed internally through the mast, resulting in a clean setup with no external cables around the mast or Motor Pod.
The result is a system that:
- Keeps the installation clean and streamlined
- Rigs quickly and easily
- Reduces exposed components
- Provides a solid, connected feel underfoot
- Maintains the performance characteristics of the AXIS foil platform

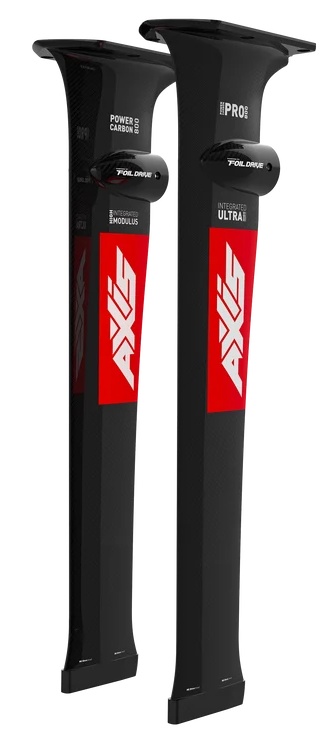

Choose Your Carbon Construction
Ultra High Modulus Carbon
The UHM Carbon Integrated Mast is the premium option, designed for riders seeking maximum stiffness, responsiveness and efficiency.
High Modulus Carbon
The HM Carbon Integrated Mast provides an excellent balance of stiffness, strength and value while retaining the benefits of the fully integrated Foil Drive design.
Built for Foil Assist
The AXIS Integrated Mast is designed to suit a wide range of Foil Drive applications — from SUP foilers looking for easier paddle-ups to experienced riders chasing longer, faster and more technical swells.
By combining AXIS carbon technology with Foil Drive electric assistance, the Integrated Mast delivers a clean, connected system that makes getting on foil easier without compromising the ride.
Specifications
Feature | Carbon Integrated 800 |
|---|---|
Length | 800 mm |
Construction | High Modulus or Ultra High Modulus Carbon |
Motor Position | 15 cm below baseplate |
Motor Position Adjustable? | No |
Cable Routing | Fully internal |
Baseplate | Redesigned slim-fit Foil Drive interface |
Shop
AXIS Integrated masts are sold on the AXIS Website, and at authorised AXIS dealers.
To buy, see: AXIS Carbon Mast Collection
Ready to Install?
For instructional video, See: AXIS Integrated Mast Assembly Guide
